Week 1 - Sean Martin

The first week of working on the ARMtech Capstone Project consisted of Project Understanding and Set up.

For set up I worked on Setting up the Microsoft Teams for our team to send larger files on as well as set up Jira Tasks for our team to complete.

I also completed research for the Capstone Project on Back drivability, stroke rehabilitation, gantry systems, and MIT-Manus. I also used this research and the project description given by Dr. Kim to formulate interview questions that I could ask Dr. Kim, the client.

Picture with Dr. Kim

List of questions we asked Dr. Kim and some of his responses.

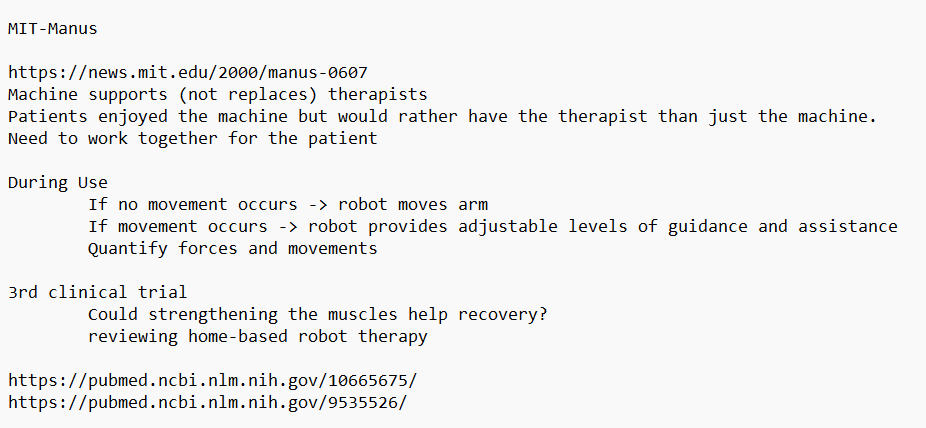

Research Notes
